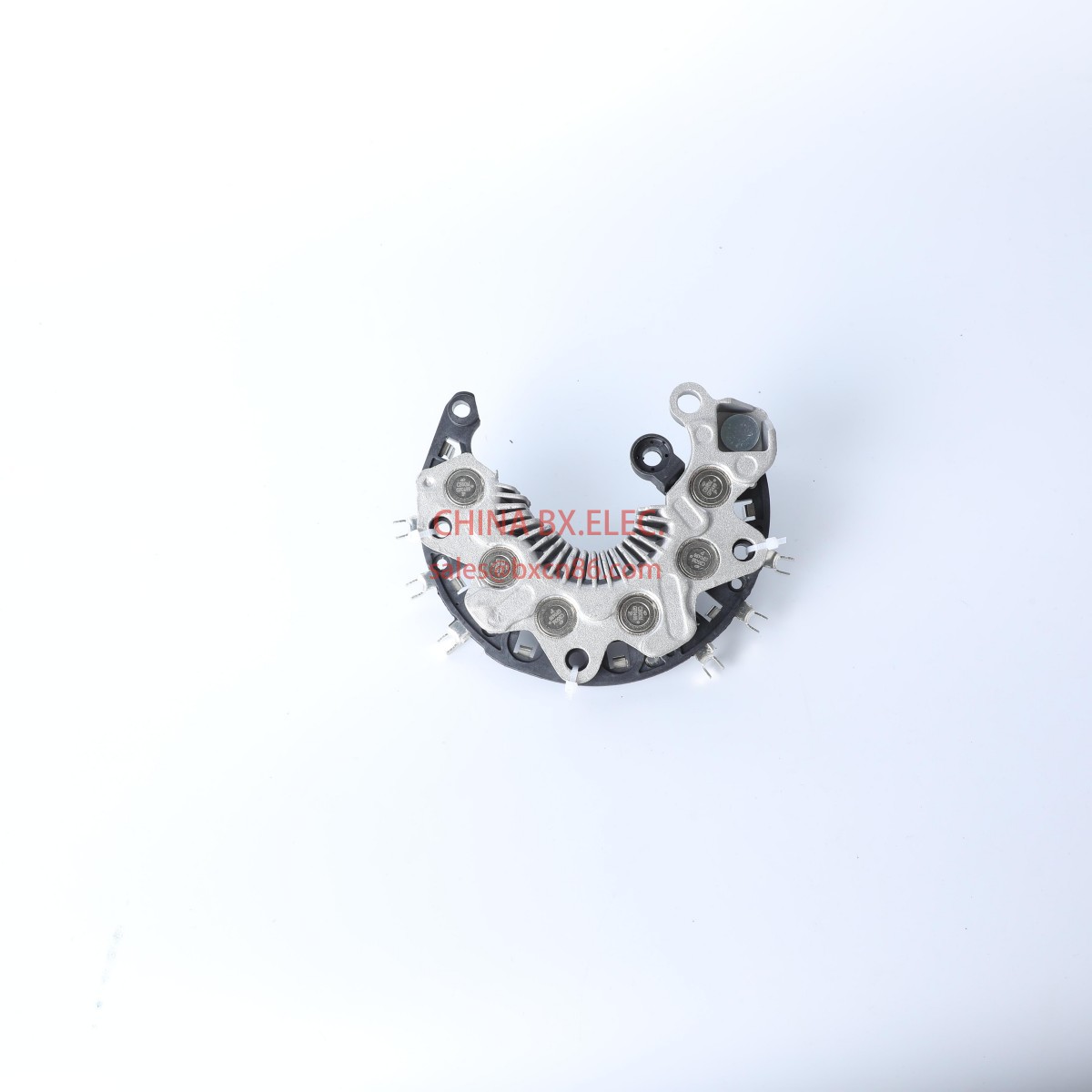

Auto Parts-Rectifier <em>BXV860-A</em> For Alternator

Diodes： 6-50A Avalanche
With M8×36mm
With M5×38mm

product details

description

When selecting a rectifier bridge, the primary task is to ensure its technical specifications closely match the generator's requirements, particularly in terms of rated voltage, rated current, and maximum reverse voltage. The rectifier bridge is considered technically feasible only if these parameters fully meet or exceed the generator's demands.

The main goal of choosing a rectifier bridge is to make sure that its technical characteristics closely align with those of the generator, especially with regard to maximum reverse voltage, rated voltage, and rated current.

The BXV series from VALEO features rectifier bridges where the negative diodes are mounted directly onto the rear cover of the motor. The number of diodes varies based on power requirements, with configurations including 6, 8, or 12 diodes. The design is characterized by its larger size and the integration of the rear cover as a substitute for the traditional negative heat sink heat sink, reducing overall costs. This series supports two types of rectifier bridge connections: triangular and star, accommodating different motor types. The compact design of the BXV series facilitates installation and space-saving, while maintaining high performance and reliability. The removal of the negative heat sink heat sink and the integration of the negative diode directly onto the rear cover optimize the structure, resulting in a lighter and more compact unit. Advantages of the BXV series include high efficiency, stability, and reliable performance. However, potential drawbacks include higher maintenance costs and some reported issues from users. Despite these concerns, the BXV series remains notable for its efficient and compact design, enhancing overall generator performance.
